Chapter 4

Applets and Graphics

Chapter Goals

To be able to write simple applets
To display graphical shapes such as lines and ellipses
To use colors To display text in multiple fonts
To select appropriate units for drawing
To develop test cases that validate the correctness of your programs

Console Application

Graphical Application

Applets

Graphical Java programs
Run inside web browser
Platform-neutral
Easy deployment--loads when needed
Secure

Web Browsers Accessing a Web Server

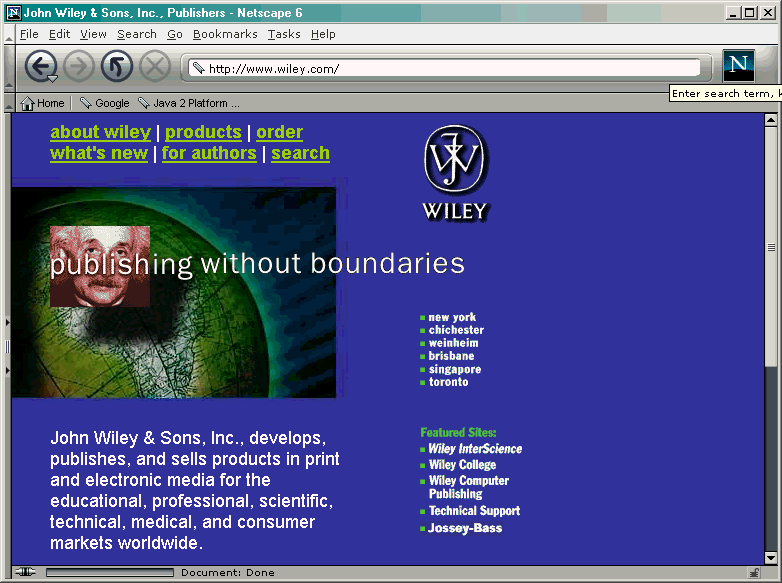

A Web Browser

Brief Introduction to HTML

Text and tags:

Java is an <i>object-oriented</i> programming language

Browser renders the tags:
Java is an object-oriented programming language

Bulleted list (like this one) is defined by tags

<ul>
   <li>. . .</li>
   <li>. . .</li>
   <li>. . .</li>
</ul>

Use <> for <> symbols

Images, Links and Applets

Image tag has attributes: source, size, alternate text

<img src="hamster.jpeg" width="640" height="480"
alt="A photo of Harry, the horrible hamster" />

Link tag has attribute for link, body for linked text
```
<a href="http://java.sun.com>Java</a> is an . . .
```

Applets need class for applet code and size:

<applet code="HamsterApplet.class"
width="640" height="480">

Viewing an Applet

Make one or more Java source files to implement your applet
One of the source files must define the applet class
Compile the source files into class files
Make an HTML file with the applet tag that references the applet class
Run appletviewer myapplet.html
Or load the HTML file into a Java 2 compliant browser

The RectangleApplet in the Applet Viewer

The RectangleApplet in a Browser

Applet Class Outline

class MyApplet extends Applet
{
   public void paint(Graphics g)
   {
      Graphics2D g2 = (Graphics2D)g;
      // add drawing operations
      . . .
   }
}

File RectangleApplet.java

1	import java.applet.Applet;
2	import java.awt.Graphics;
3	import java.awt.Graphics2D;
4	import java.awt.Rectangle;
5
6	/**
7	An applet that draws two rectangles.
8	`*/`
9	public class RectangleApplet extends Applet
10	{
11	public void paint(Graphics g)
12	{
13	// recover Graphics2D
14
15	Graphics2D g2 = (Graphics2D)g;
16
17	// construct a rectangle and draw it
18
19	Rectangle cerealBox = new Rectangle(5, 10, 20, 30);
20	g2.draw(cerealBox);
21
22	// move rectangle 15 units sideways and 25 units down
23
24	cerealBox.translate(15, 25);
25
26	// draw moved rectangle
27
28	g2.draw(cerealBox);
29	}
30	}

Graphical Shapes

Shape classes Ellipse2D.Double, Line2D.Double, etc.
We won't use the .Float classes
These classes are inner classes--doesn't matter to us except for the import statement:
```
import java.awt.geom.Ellipse2D; // no .Double
```
Must construct and draw the shape
Ellipse2D.Double easterEgg = new Ellipse2D.Double(5, 10, 15, 20); g2.draw(easterEgg)

Specifying an Ellipse

Lines and Points

Line2D.Double segment = new Line2D.Double(x1, x2, y1, y2);

More object-oriented to use Point2D.Double for the end points:

Point2D.Double from = new Point2D.Double(x1, y1);
Point2D.Double to = new Point2D.Double(x2, y2);
Line2D.Double segment = new Line2D.Double(from, to);

Draw thick lines:

g2.setStroke(new BasicStroke(4.0F)); // 4 pixels

Colors

Specify red, green, blue between 0.0F and 1.0F Color magenta = new Color(1.0F, 0.0F, 1.0F)
Standard colors
Color.black Color.yellow Color.pink . . .
Set color in graphics context:
g2.setColor(Color.pink);
Then draw or fill shapes
g2.fill(easterEgg);

Text and Fonts

Specify text and base point:
g2.drawString("Applet", 50, 100);
Font object has

face name (Serif, SansSerif, Monospaced, ...)
style (Font.PLAIN, Font.BOLD, Font.ITALIC )
point size (12 point = normal size)

g2.setFont(new Font("Serif", Font.BOLD, 36));

Common Fonts

Basepoint and Baseline

Plan Complex Shapes with Graph Paper

The Car Drawer Applet

File CarApplet.java

1	import java.applet.Applet;
2	import java.awt.Graphics;
3	import java.awt.Graphics2D;
4	import java.awt.Rectangle;
5
6	/**
7	An applet that draws two rectangles.
8	`*/`
9	public class RectangleApplet extends Applet
10	{
11	public void paint(Graphics g)
12	{
13	// recover Graphics2D
14
15	Graphics2D g2 = (Graphics2D)g;
16
17	// construct a rectangle and draw it
18
19	Rectangle cerealBox = new Rectangle(5, 10, 20, 30);
20	g2.draw(cerealBox);
21
22	// move rectangle 15 units sideways and 25 units down
23
24	cerealBox.translate(15, 25);
25
26	// draw moved rectangle
27
28	g2.draw(cerealBox);
29	}
30	}

File Car.java

1	import java.awt.Graphics2D;
2	import java.awt.geom.Ellipse2D;
3	import java.awt.geom.Line2D;
4	import java.awt.geom.Point2D;
5	import java.awt.geom.Rectangle2D;
6
7	/**
8	A car shape that can be positioned anywhere on the screen.
9	`*/`
10	public class Car
11	{
12	/**
13	Constructs a car with a given top left corner
14	@param x the x coordinate of the top left corner
15	@param y the y coordinate of the top left corner
16	`*/`
17	public Car(double x, double y)
18	{
19	xLeft = x;
20	yTop = y;
21	}
22
23	/**
24	Draws the car
25	@param g2 the graphics context
26	`*/`
27	public void draw(Graphics2D g2)
28	{
29	Rectangle2D.Double body
30	= new Rectangle2D.Double(xLeft, yTop + 10, 60, 10);
31	Ellipse2D.Double frontTire
32	= new Ellipse2D.Double(xLeft + 10, yTop + 20, 10, 10);
33	Ellipse2D.Double rearTire
34	= new Ellipse2D.Double(xLeft + 40, yTop + 20, 10, 10);
35
36	// the bottom of the front windshield
37	Point2D.Double r1
38	= new Point2D.Double(xLeft + 10, yTop + 10);
39	// the front of the roof
40	Point2D.Double r2
41	= new Point2D.Double(xLeft + 20, yTop);
42	// the rear of the roof
43	Point2D.Double r3
44	= new Point2D.Double(xLeft + 40, yTop);
45	// the bottom of the rear windshield
46	Point2D.Double r4
47	= new Point2D.Double(xLeft + 50, yTop + 10);
48
49	Line2D.Double frontWindshield
50	= new Line2D.Double(r1, r2);
51	Line2D.Double roofTop
52	= new Line2D.Double(r2, r3);
53	Line2D.Double rearWindshield
54	= new Line2D.Double(r3, r4);
55
56	g2.draw(body);
57	g2.draw(frontTire);
58	g2.draw(rearTire);
59	g2.draw(frontWindshield);
60	g2.draw(roofTop);
61	g2.draw(rearWindshield);
62	}
63
64	private double xLeft;
65	private double yTop;
66	}

Reading Text Input

Call JOptionPane.showInputDialog in the constructor
Dialog has warning label--security feature
Set instance variables with the input results
Read them in the paint method
Need to wait for chapter 10/12 for more elegant input

Applet Dialog with Warning Label

File ColorApplet.java

1	import java.applet.Applet;
2	import java.awt.Color;
3	import java.awt.Graphics;
4	import java.awt.Graphics2D;
5	import java.awt.Rectangle;
6	import javax.swing.JOptionPane;
7
8	/**
9	An applet that lets a user choose a color by specifying
10	the fractions of red, green, and blue.
11	`*/`
12	public class ColorApplet extends Applet
13	{
14	public ColorApplet()
15	{
16	String input;
17
18	// ask the user for red, green, blue values
19
20	input = JOptionPane.showInputDialog("red:");
21	float red = Float.parseFloat(input);
22
23	input = JOptionPane.showInputDialog("green:");
24	float green = Float.parseFloat(input);
25
26	input = JOptionPane.showInputDialog("blue:");
27	float blue = Float.parseFloat(input);
28
29	fillColor = new Color(red, green, blue);
30	}
31
32	public void paint(Graphics g)
33	{
34	Graphics2D g2 = (Graphics2D)g;
35
36	// select color into graphics context
37
38	g2.setColor(fillColor);
39
40	// construct and fill a square whose center is
41	// the center of the window
42
43	Rectangle square = new Rectangle(
44	(getWidth() - SQUARE_LENGTH) / 2,
45	(getHeight() - SQUARE_LENGTH) / 2,
46	SQUARE_LENGTH,
47	SQUARE_LENGTH);
48
49	g2.fill(square);
50	}
51
52	private static final int SQUARE_LENGTH = 100;
53
54	private Color fillColor;
55	}
56

Comparing Visual and Numerical Information

Compute intersection between circle and vertical line
Circle has radius r = 100 and center (a, b) = (100, 100)
Line has constant x value
Intersection points are
Plot circle, line, computed intersection points
If the points are correct, then the visual and numerical results are the same

Intersection of a Line and a Circle

File IntersectionApplet.java

1	import java.applet.Applet;
2	import java.awt.Graphics;
3	import java.awt.Graphics2D;
4	import java.awt.geom.Ellipse2D;
5	import java.awt.geom.Line2D;
6	import javax.swing.JOptionPane;
7
8	/**
9	An applet that computes and draws the intersection points
10	of a circle and a line.
11	`*/`
12	public class IntersectionApplet extends Applet
13	{
14	public IntersectionApplet()
15	{
16	String input
17	= JOptionPane.showInputDialog("x:");
18	x = Integer.parseInt(input);
19	}
20
21	public void paint(Graphics g)
22	{
23	Graphics2D g2 = (Graphics2D)g;
24
25	double r = 100; // the radius of the circle
26
27	// draw the circle
28
29	Ellipse2D.Double circle
30	= new Ellipse2D.Double(0, 0, 2 * RADIUS, 2 * RADIUS);
31	g2.draw(circle);
32
33	// draw the vertical line
34
35	Line2D.Double line
36	= new Line2D.Double(x, 0, x, 2 * RADIUS);
37	g2.draw(line);
38
39	// compute the intersection points
40
41	double a = RADIUS;
42	double b = RADIUS;
43
44	double root = Math.sqrt(RADIUS * RADIUS - (x - a) * (x - a));
45	double y1 = b + root;
46	double y2 = b - root;
47
48	// draw the intersection points
49
50	LabeledPoint p1 = new LabeledPoint(x, y1);
51	LabeledPoint p2 = new LabeledPoint(x, y2);
52
53	p1.draw(g2);
54	p2.draw(g2);
55	}
56
57	private static final double RADIUS = 100;
58	private double x;
59	}

Coordinate Transformations

Plot temperature data in Phoenix
x ranges from 1 (January) to 12 (December)
y ranges from 11 degrees (Celsius) to 33 degrees
Transform user coordinates to pixel coordinates
Encapsulate computation in convenience methods xpixel, ypixel(see code)
Even better, use graphics context transforms (advanced topic)

Temperature Chart

File ChartApplet.java

1	import java.applet.Applet;
2	import java.awt.Graphics;
3	import java.awt.Graphics2D;
4	import java.awt.geom.Line2D;
5
6	/**
7	This applet draws a chart of the average monthly
8	temperatures in Phoenix, AZ.
9	`*/`
10	public class ChartApplet extends Applet
11	{
12	public void paint(Graphics g)
13	{
14	Graphics2D g2 = (Graphics2D)g;
15
16	month = 1;
17
18	drawBar(g2, JAN_TEMP);
19	drawBar(g2, FEB_TEMP);
20	drawBar(g2, MAR_TEMP);
21	drawBar(g2, APR_TEMP);
22	drawBar(g2, MAY_TEMP);
23	drawBar(g2, JUN_TEMP);
24	drawBar(g2, JUL_TEMP);
25	drawBar(g2, AUG_TEMP);
26	drawBar(g2, SEP_TEMP);
27	drawBar(g2, OCT_TEMP);
28	drawBar(g2, NOV_TEMP);
29	drawBar(g2, DEC_TEMP);
30	}
31
32	/**
33	Draws a bar for the current month and increments
34	the month.
35	@param g2 the graphics context
36	@param temperature the temperature for the month
37	`*/`
38	public void drawBar(Graphics2D g2, int temperature)
39	{
40	Line2D.Double bar
41	= new Line2D.Double(xpixel(month), ypixel(0),
42	xpixel(month), ypixel(temperature));
43
44	g2.draw(bar);
45
46	month++;
47	}
48
49	/**
50	Converts from user coordinates to pixel coordinates
51	@param xuser an x-value in user coordinates
52	@return the corresponding value in pixel coordinates
53	`*/`
54	public double xpixel(double xuser)
55	{
56	return (xuser - XMIN) * (getWidth() - 1) / (XMAX - XMIN);
57	}
58
59	/**
60	Converts from user coordinates to pixel coordinates
61	@param yuser a y-value in user coordinates
62	@return the corresponding value in pixel coordinates
63	`*/`
64	public double ypixel(double yuser)
65	{
66	return (yuser - YMAX) * (getHeight() - 1) / (YMIN - YMAX);
67	}
68
69	private static final int JAN_TEMP = 11;
70	private static final int FEB_TEMP = 13;
71	private static final int MAR_TEMP = 16;
72	private static final int APR_TEMP = 20;
73	private static final int MAY_TEMP = 25;
74	private static final int JUN_TEMP = 31;
75	private static final int JUL_TEMP = 33;
76	private static final int AUG_TEMP = 32;
77	private static final int SEP_TEMP = 29;
78	private static final int OCT_TEMP = 23;
79	private static final int NOV_TEMP = 16;
80	private static final int DEC_TEMP = 12;
81
82	private static final double XMIN = 1;
83	private static final double XMAX = 12;
84	private static final double YMIN = 0;
85	private static final double YMAX = 40;
86
87	private int month;
88	}
89
90
